Square D EC&M No. 40 Type WB Brake, Folio 3

Ohio Contact replacement crane controls for Square D EC&M No. 40 Type WB Brake, Folio 3. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

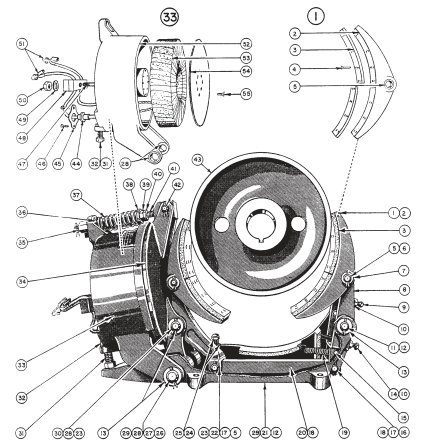

Square D EC&M No. 40 Type WB Brake, Folio 3

Item No. OEM No. Description
1 WB-4200-A Assembled Shoe, Complete
2 WB-4317-A Brake Shoe
3 WB-418 Brake Lining
5 FP-24B24 Bearing
6 WB-4213 Shoe Pin
7 FA-78 Washer, for Shoe Lever Pin
8 WB-4204-A Shoe Lever With Spring Pin
9 WB-4244 Shoe Adjusting Screw
11 WB-4240 Shoe Lever Pin
12 FP-24B27 Bearing
13 WB-4228 Washer, for Shoe Lever Pin
14 WB-4243 Equalizing Screw
15 WB-419 Centering Spring Pin
16 WB-424 Connecting Rod Pin
17 FP-24B23 Bearing
18 FP-24C13 Bearing
19 WB-426 Centering Spring
20 WB-4217-A Connecting Rod
21 WB-4186-A Frame Complete
22 WB-4202-A Balance Lever
23 FP-24C14 Bearing
24 WB-4215 Shoe Adjusting Screw
26 WB-4223 Magnet Hinge Pin
27 FP-24B28 Bearing
28 FP-24B26 Bearing
29 FP-24C31 Bearing
30 WB-4222 Armature Pin
31 WB-433 Special Cap Screw
33 WB-4312-A Assembled Magnet Complete
34 WB-4190-A Armature Complete
35 WB-4236-A Spring Rod Nut
36 WB-4239 Spring Retainer
37 WB-436 Operating Spring
38 WB-414 Spring Collar
41 WB-4234-A Spring Rod
42 WB-425 Spring Rod Pin
44 WB-503 Terminal Bushing
45 WB-529 Terminal Guard
47 Q-369 Lead Block Stud
48 Q-368 Lead Block
52 WB-4192-A Magnet Case
54 WB-4183 Retaining Plate
0 WB-4146-A Coil
