Square D EC&M No. 40 Type WB Brake, Folio 2

Ohio Contact replacement crane controls for Square D EC&M No. 40 Type WB Brake, Folio 2. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

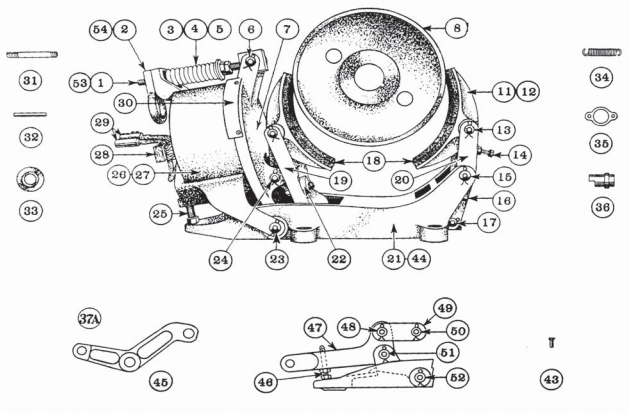

Square D EC&M No. 40 Type WB Brake, Folio 2

Item No. OEM No. Description
1 WB-483-A Spring Rod, with Nuts
2 WB-381 Handle
3 WB-416 Brake Spring
4 WB-436 Operating Spring
6 WB-425 Spring Rod Pin
7 WB-487-A Armature
11 WB-4200-A Assembled Shoe, Complete
12 WB-4317-A Brake Shoe
13 WB-420 Shoe Pin
14 WB-435 Special Cap Screw
15 WB-422 Shoe Lever Hinge Pin
16 WB-334 Equalizing Screw
17 WB-424 Connecting Rod Pin
18 WB-418 Brake Lining
19 WB-405 Shoe Lever
20 WB-4204-A Shoe Lever With Spring Pin
21 WB-489-A Frame
22 WB-432-A Shoe Adjusting Wheel w/screw
23 WB-423 Magnet Hinge Pin
24 WB-421 Armature Pin
25 WB-433 Special Cap Screw
26 WB-4184-A Assembled Magnet
27 WB-4174-A Magnet Case
28 Q-368 Lead Block
30 WB-4163 Dust Shield
31 Q-369 Lead Block Stud
32 WB-419 Centering Spring Pin
33 WB-414 Spring Collar
34 WB-426 Centering Spring
35 WB-529 Terminal Guard
36 WB-503 Terminal Bushing
37 WB-409 Retaining Plate, Brass
37 WB-4183 Retaining Plate
40 WB-408 Balance Lever
41 WB-4217-A Connecting Rod
43 WB-366 Rivet
46 WB-455 Magnet Adjusting Screw
0 WB-466 Bushing, Frame, Lower Inner
0 WB-4131-A Coil
0 WB-4132-A Coil, Series Wound 100-HP
0 51001-071-63 Brake Block Kit
0 WB-463 Bushing, Armature
0 WB-461 Bushing, Magnet Case
0 WB-462 Bushing, Shoe Lever
0 WB-464 Bushing, Armature/Lower
