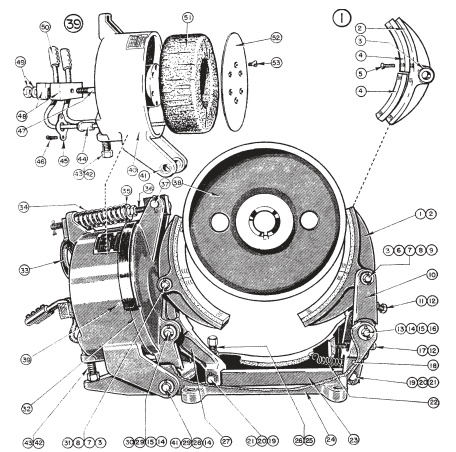

Square D EC&M No. 30 Type WB Brake, Folio 3

Item No. OEM No. Description
1 WB-3200-A Assembled Shoe, Complete
2 WB-3317-A Brake Shoe
3 FP-24B19 Bearing
4 WB-318 Brake Lining
5 WB-366 Rivet
6 WB-3213 Shoe Pin
7 WB-3227 Washer
8 FP-24B17 Bearing
9 WB-3220 Spacer
10 WB-3204-A Shoe Lever with Hinge Pin
11 WB-355 Shoe Adjusting Screw
13 WB-322 Shoe Lever Hinge Pin
14 WB-3228 Washer
15 FP-24B21 Bearing
16 FP-24B20 Bearing
17 WB-235 Equalizing Screw
18 WB-319 Spring Pin
19 WB-324 Connecting Rod Pin
20 FP-24B18 Bearing
21 FP-24C10 Bearing
22 WB-326 Centering Spring
23 WB-3217-A Connecting Rod
24 WB-3186-A Frame Complete
25 WB-3215 Shoe Adjusting Screw
27 WB-3202-A Balance Lever
28 WB-3223 Magnet Hinge Pin
29 FP-24C11 Bearing
30 WB-345 Armature Pin
31 WB-3214 Shoe Pin
32 WB-3190-A Armature Complete
33 WB-381 Handle
34 WB-316 Operating Spring
35 WB-2249 Spring Collar
36 WB-383-A Spring Rod with Nuts
37 WB-325 Spring Rod Pin
39 WB-3312-A Assembled Magnet
40 WB-3192-A Magnet Case
41 FP-24B22 Bearing
42 WB-333 Special Cap Screw
44 WB-303 Terminal Bushing
45 Q-305 Terminal Guard
47 Q-369 Lead Block Stud
48 Q-368 Lead Block
51 WB-3125-A Coil
52 WB-3138 Retaining Plate
