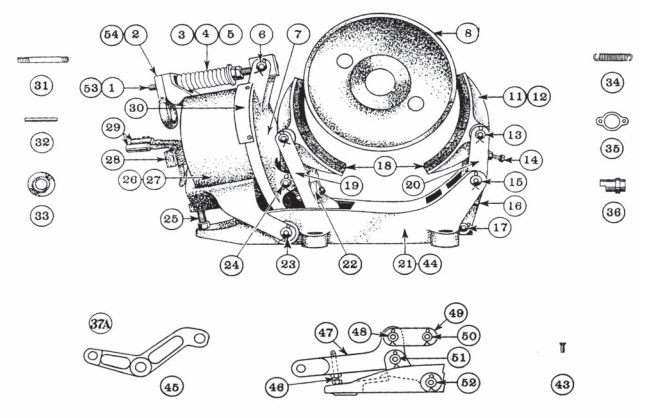

Square D EC&M No. 30 Type WB Brake, Folio 2

Ohio Contact replacement crane controls for Square D EC&M No. 30 Type WB Brake, Folio 2. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

Square D EC&M No. 30 Type WB Brake, Folio 2

Item No. OEM No. Description
1 WB-383-A Spring Rod with Nuts
2 WB-381 Handle
3 WB-316 Operating Spring
6 WB-325 Spring Rod Pin
7 WB-387-A Armature
11 WB-3200-A Assembled Shoe, Complete
12 WB-3317-A Brake Shoe
13 WB-320 Shoe Pin
15 WB-322 Shoe Lever Hinge Pin
16 WB-235 Equalizing Screw
17 WB-324 Connecting Rod Pin
18 WB-318 Brake Lining
19 WB-305 Shoe Lever
20 WB-385-A Shoe Lever With Spring Pin
21 WB-389-A Frame
22 WB-332-A Shoe Adjusting Wheel w/ Screw
23 WB-322 Shoe Lever Hinge Pin
24 WB-321 Armature Pin
25 WB-333 Special Cap Screw
26 WB-3184-A Assembled Magnet
27 WB-3174-A Magnet Case
28 Q-368 Lead Block
30 WB-315 Dust Shield
31 Q-369 Lead Block Stud
32 WB-319 Spring Pin
33 WB-314 Spring Collar
34 WB-326 Centering Spring
35 WB-329 Terminal Guard
36 WB-303 Terminal Bushing
37 WB-309 Retaining Plate, Brass
37 WB-3183 Retaining Plate
40 WB-308 Balance Lever
41 WB-3217-A Connecting Rod
43 WB-366 Rivet
46 WB-355 Shoe Adjusting Screw
50 WB-345 Armature Pin
0 WB-363 Bushing, Armature/Lower
0 WB-3144-A Coil
0 WB-362 Bushing, Armature
0 WB-365 Bushing, Shoe Lever
0 WB-364 Bushing, Frame
0 WB-361 Bushing
0 WB-31XX Coil, 50 HP
