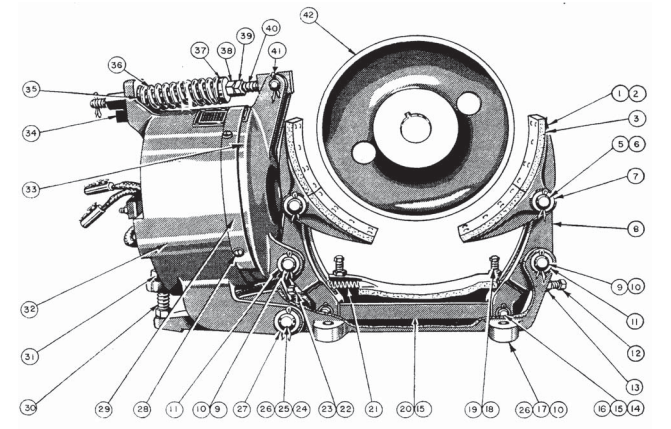

Ohio Contact replacement crane controls for Square D EC&M No. 22 Type WB Brake, Folio 1. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | WB-2200-A | Assembled Shoe, Complete |
| 2 | WB-2317-A | Brake Shoe |
| 3 | WB-2340 | Brake Lining |
| 4 | WB-359 | Lining Rivet |
| 5 | FP-24B17 | Bearing |
| 6 | WB-2213 | Shoe Pin |
| 7 | WB-3227 | Washer |
| 8 | WB-2204-A | Shoe Lever |
| 9 | WB-2343 | Shoe Lever Pin |
| 10 | FP-24B36 | Bearing |
| 11 | FA-78 | Washer, for Shoe Lever Pin |
| 12 | WB-2243 | Equalizing Screw |
| 14 | WB-2342 | Connecting Rod Pin |
| 15 | FP-24C10 | Bearing |
| 16 | FP-24B18 | Bearing |
| 17 | WB-2186-A | Frame |
| 18 | WB-2215 | Shoe Adjusting Screw |
| 20 | WB-2217-A | Connecting Rod |
| 21 | WB-2330 | Centering Spring |
| 22 | WB-2333 | Guide Screw |
| 24 | WB-2223 | Magnet Hinge Pin |
| 25 | FP-24B21 | Bearing |
| 26 | FP-24C32 | Bearing |
| 27 | WB-3228 | Washer |
| 29 | WB-2259 | Dust Shield |
| 30 | WB-233 | Magnet Adjusting Screw |
| 32 | WB-2312-A | Assembled Magnet |
| 33 | WB-2188-A | Armature |
| 34 | WB-4236-A | Spring Rod Nut |
| 35 | WB-2239 | Spring Retainer |
| 36 | WB-2329 | Operating Spring |
| 37 | WB-2249 | Spring Collar |
| 40 | WB-2234-A | Spring Rod |
| 41 | WB-225 | Spring Rod Pin |
| 43 | WB-2242 | Terminal Bushing |
| 44 | Q-305 | Terminal Guard |
| 46 | Q-165 | Lead Block Stud |
| 47 | Q-257 | Lead Block |
| 52 | WB-2192-A | Magnet Case |
| 54 | WB-2250 | Retaining Plate |
| 0 | WB-2280-A | Series Coil |
| 0 | WB-22 Shunt | Shunt Coil |
| 0 | WB-2283-A | Coil |
| 0 | 51001-071-61 | Brake Block Kit |
| 0 | WB-2281-A | Series Coil |
