Square D EC&M No. 20 Type WB Brake, Folio 2

Ohio Contact replacement crane controls for Square D EC&M No. 20 Type WB Brake, Folio 2. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

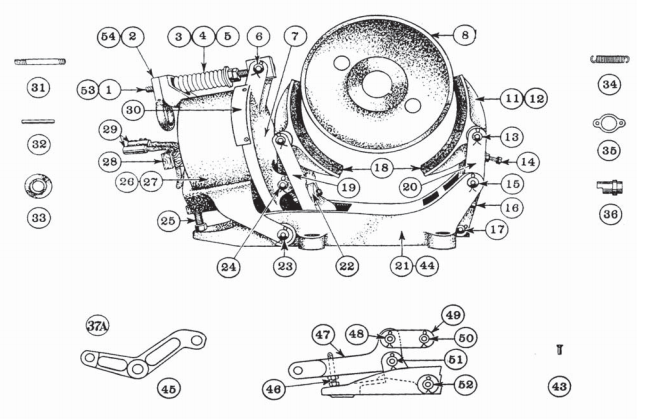

Square D EC&M No. 20 Type WB Brake, Folio 2

Item No. OEM No. Description
1 WB-283-A Spring Rod with Nuts
2 WB-281 Handle
3 WB-216 Brake Spring
6 WB-225 Spring Rod Pin
7 WB-287-A Armature
11 WB-210-A Assembled Shoe
12 WB-204 Brake Shoe
13 WB-220 Shoe Pin
14 WB-238 Shoe Adjusting Screw
15 WB-222 Shoe Lever Hinge Pin
16 WB-235 Equalizing Screw
17 WB-224 Connecting Rod Pin
18 WB-218 Brake Lining
18 51001-071-60 Lining Kit
19 WB-205 Shoe Lever
20 WB-285-A Shoe Lever
22 WB-232-A Shoe Adjusting Wheel w/screw
23 WB-223 Magnet Hinge Pin
24 WB-221 Armature Pin
25 WB-455 Magnet Adjusting Screw
26 WB-290-A Assembled Magnet
27 WB-288-A Magnet Case
28 Q-257 Lead Block
30 WB-2163 Dust Shield
30 WB-215 Dust Shield, Steel
31 Q-165 Lead Block Stud
32 WB-219 Centering Spring Pin
33 WB-2061 Spring Collar
34 WB-226 Centering Spring
35 Q-305 Terminal Guard
36 WB-229 Terminal Bushing
37 WB-209 Retaining Plate, Brass
40 WB-286-A Balance Lever
41 WB-206-A Connecting Rod
43 WB-259 Lining Rivet
44 WB-289-A Frame
48 WB-424 Connecting Rod Pin
0 WB-263 Bushing, Armature/Lower
0 WB-262 Bushing, Armature
0 WB-265 Bushing, Shoe Lever
0 WB-264 Bushing, Frame/Upper
0 WB-261 Bushing, Magnet Case
0 WB-267 Bushing, Balance Lever
0 FP-24C36 Bushing
0 29005-48301 Bushing
