Square D EC&M No. 10 Type WB Brake, Folio 2

Ohio Contact replacement crane controls for Square D EC&M No. 10 Type WB Brake, Folio 2. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

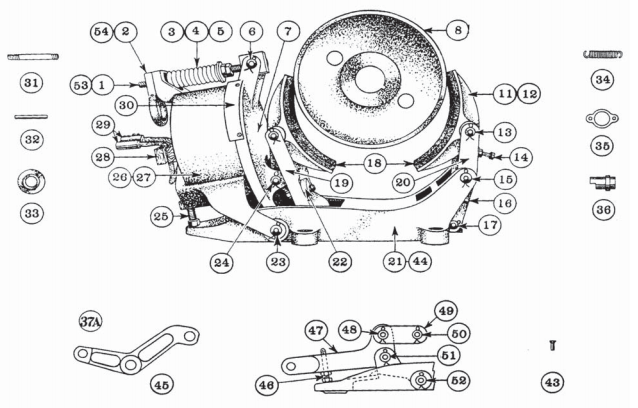

Square D EC&M No. 10 Type WB Brake, Folio 2

Item No. OEM No. Description
1 WB-183-A Spring Rod , with Nuts
2 WB-181 Handle
3 WB-116 Brake Spring
6 WB-125 Spring Rod Pin
7 WB-187-A Armature
8 WB-132-A Wheel
11 WB-110-A Assembled Shoe
12 WB-104 Brake Shoe
13 WB-120 Shoe Pin
15 WB-122 Shoe Lever Hinge Pin
16 WB-133 Equalizing Screw
17 WB-124 Connecting Rod Pin
18 WB-118 Brake Lining
19 WB-105 Shoe Lever (Armature End)
20 WB-185-A Shoe Lever With Spring Pin
21 WB-189-A Frame
23 WB-123 Magnet Hinge Pin
24 WB-121 Armature Pin
25 WB-434 Special Cap Screw
26 WB-190-A Assembled Magnet
27 WB-188-A Magnet Case
28 Q-164 Lead Block
30 WB-1163 Dust Shield
31 Q-165 Lead Block Stud
32 WB-119 Centering Spring Pin
33 WB-114 Spring Collar
34 WB-126 Centering Spring
37 WB-109 Retaining Plate, Brass
40 WB-186-A Balance Lever
41 WB-106 Connecting Rod
43 WB-159 Lining Rivet
46 WB-134 Shoe Adjusting Screw
0 WB-1129-A Coil
0 WB-1132-A Coil, 5-8 HP
0 51001-071-59 Brake Block Kit
0 WB-1133-A Coil
0 WB-162 Bushing, Armature/Upper
0 WB-161 Bushing, Magnet Case
0 WB-164 Bushing, Frame/Upper
0 WB-165 Bushing, Shoe Lever
0 WB-163 Bushing, Armature-Frame/Upper
