Square D Class 5060 16" Type AT Adjustable Torque Brake

Ohio Contact replacement crane controls for Square D Class 5060 16" Type AT Adjustable Torque Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

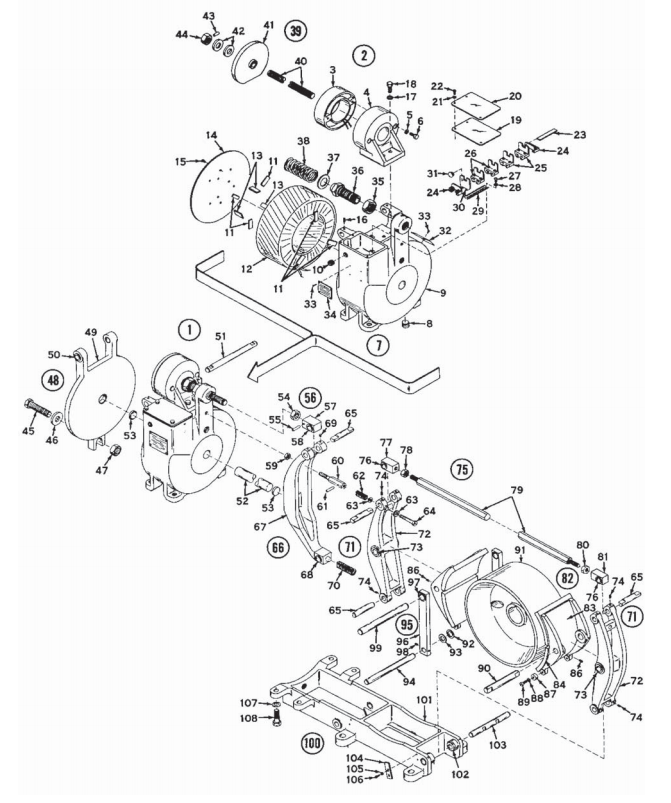

Square D Class 5060 16" Type AT Adjustable Torque Brake

Item No. OEM No. Description
1 51011-056-50 Magnet Assembly
2 51011-047-50 Parking Magnet Assembly
3 50512-154-22 Coil Spacer
3 51011-049-51 Parking Magnet Coil
4 51011-048-01 Parking Magnet Coil
5 23701-00240 Pl. Lk. Washer
6 23401-24280 Cap Screw
7 51011-057-50 Service Magnet Assembly
9 51011-059-01 Service Magnet Case
11 W-8086 Coil Spacer
12 51011-024-52 Service Magnet Coil
14 51011-030-01 Coil Retaining Plate
19 51011-031-02 Terminal Box Gasket
20 51011-031-01 Terminal Box Cover
23 1828-C23-X4 Marking Strip
24 1828-D57-G1 End Clamp Assembly
25 1828-D55-G1 Terminal Block Assembly
26 1828-D54-G1 Terminal Block Assembly
29 1828-C22-X4 Mounting Track
30 1828-C18-X1 Barrier
31 1828-D71-X1 Nylon Plug
34 51139-028-03 Calibration Plate
35 50502-551-04 Spring Adjuster Nut
36 51011-018-01 Spring Adjuster
37 50502-003-44 Spring Adjuster Washer
38 W-16154 Operating Spring
39 51011-061-51 Spring Rod Assembly
40 51011-050-01 Spring Rod
41 51011-058-01 Parking Magnet Armature
42 23690-01650 Spherical Washer
43 24209-12480 Roll Pin
44 51009-053-02 Special Nut
45 21401-38840 Cap Screw
46 50502-003-46 Armature Stop Washer
47 23002-00380 H.Nut
48 51011-011-50 Service Brake Armature Assy
49 51011-011-01 Service Brake Armature
50 FP-24J19 Bushing
51 51011-036-01 Pin
52 51011-020-01 Thrust Pin
53 51011-019-01 Thrust Pad
54 23004-00400 H. Nut
55 24209-12480 Roll Pin
56 51011-022-50 Spring Rod Link Assembly
57 51011-022-01 Spring Rod Link
58 FP-24J19 Bushing
59 23003-00320 Jam Nut
60 51011-063-01 Centering Spring Stud
61 24209-08241 Roll Pin
62 50502-601-43 Centering Spring
63 23601-00280 Washer
64 21401-28720 Cap Screw
65 AT-13028 Connecting Rod
66 51011-015-50 L-Lever Assembly
67 51011-015-01 L-Lever
68 FP-24J19 Bushing
69 22903-24200 Set Screw
70 50502-601-22 Release Spring
71 51011-014-50 Shoe Lever Assembly
72 51011-014-01 Shoe Lever
73 FP-24B32 Shaft Bushing
74 22903-24200 Set Screw
75 51011-016-50 Connecting Rod Assembly
76 FP-24J19 Bushing
77 51011-029-50 Link, R.H.
78 50502-551-06 Nut
79 50502-326-19 Connecting Rod
80 50502-551-05 H. St. Nut, L.H.
81 51011-029-51 Link, L.H.
82 W-16004-A Assembled Brake Shoe, Complete
83 W-16005-A Brake Shoe
84 W-16043 Brake Block
85 W-16046 Rivet
86 22903-24200 Set Screw
87 W-16163 Shoe Adjusting Cam
90 W-16032 Shoe Pin
92 WB-3227 Washer
93 50502-003-45 Drag Link Spacer
94 51011-036-01 Pin
95 51011-017-50 Drag Link Assembly
96 51011-017-01 Drag Link
97 FP-24B44 Bearing
98 22903-24200 Set Screw
99 51011-036-02 Shoe Pin
100 51011-010-50 Frame Assembly
101 51011-010-01 Frame
102 FP-24J19 Bushing
103 51011-036-03 Shoe Lever Pin
104 W-16162 Rail
