Square D Class 5060 13" Type AT Adjustable Torque Brake

Ohio Contact replacement crane controls for Square D Class 5060 13" Type AT Adjustable Torque Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

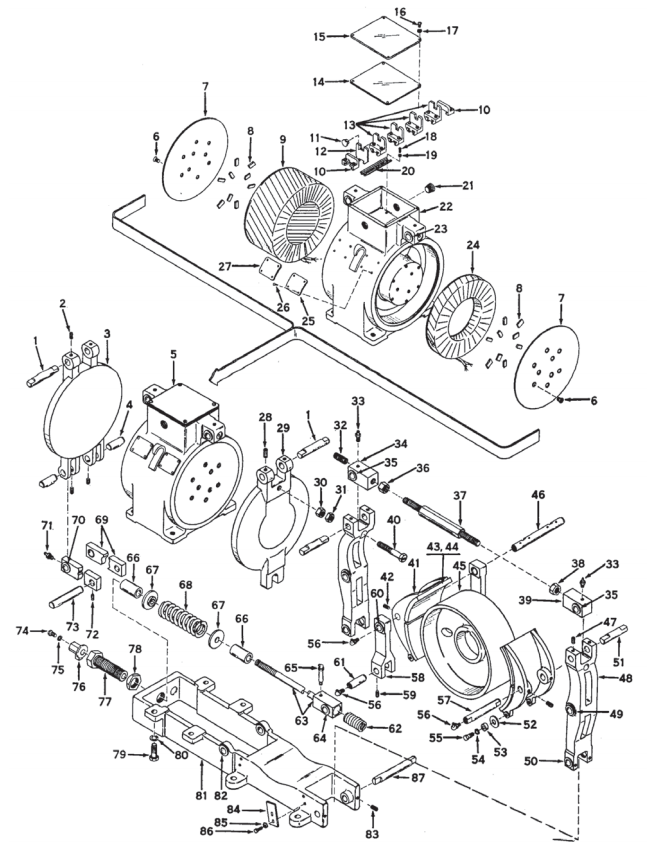

Square D Class 5060 13" Type AT Adjustable Torque Brake

Item No. OEM No. Description
1 AT-13027 Armature
2 AT-13002-A Main Armature
3 AT-13003 Armature
4 AT-13030 Link Rod
5 AT-13001-A Magnet Assembly
7 W-13187 Coil Retaining Plate
8 W-8086 Coil Spacer
10 1828-D57-G1 End Clamp Assembly
12 1828-C18-X1 Barrier
13 1828-D54-G1 Terminal Block Assembly
14 AT-13040 Terminal Box Gasket
15 AT-13031 Terminal Box Cover
20 1828-C22-X4 Mounting Track
22 AT-13018 Magnet Case
23 FP-24B40 Bearing
26 AT-13024 Nut, R.H.
27 AT-13005-A Auxiliary Armature Assembly
29 AT-13004-A Auxiliary Armature
32 AT-13008-A Connecting Rod
34 AT-13010 Connecting Rod
35 FP-24J14 Bearing
37 AT-13009 Connecting Rod
38 AT-13038 Nut, L.H.
39 AT-13011 Connecting Rod
40 AT-13034 Equalizing Screw
41 W-13005 Shoe
41 W-13004-A Shoe Assembly
42 W-13043 Brake Block
44 W-13046 Rivet
46 AT-13046 Right Shoe Pin
47 AT-13006-A Shoe Lever Assembly
48 AT-13007 Shoe Lever
49 FP-24B40 Bearing
50 FP-24J14 Bearing
51 AT-13028 Connecting Rod
52 MT-691 Equalizer Screw
53 W-16163 Adjusting Ring
57 AT-13047 Left Shoe Pin
58 AT-13039 Anti-Drag Lever
60 FP-24B40 Bearing
61 AT-13029 Pin
62 AT-13022 Release Spring
63 AT-13012A Spring Rod
64 FP-24J14 Bearing
66 AT-13032 Spacer
67 AT-13033 Spring Collar
68 AT-13015-A Armature Link Assembly
68 W-13020 Operating Spring
69 AT-13016 Armature Link
70 FP-24B40 Bearing
71 52927-017-60 Grease Fitting
73 AT-13025 Spring Rod Pin
76 W-13022 Manual Release Nut
77 W-13076 Spring Adjusting Nut
78 WB-6115 Special Nut
80 AT-13019-A Frame Assembly
81 AT-13020 Frame
82 FP-24J13 Bearing
84 W-13161 Rail
87 AT-13026 Right Shoe Lever Hinge Pin
0 AT-13008-A Connecting Rod Assembly
