Square D Class 5010 30" Type WB Brake, Folio 6

Ohio Contact replacement crane controls for Square D Class 5010 30" Type WB Brake, Folio 6. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

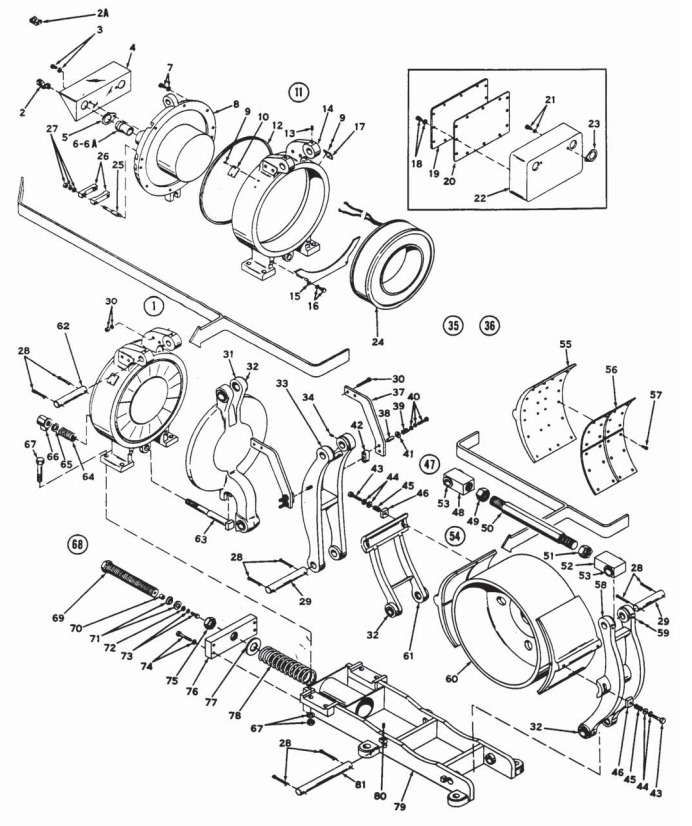

Square D Class 5010 30" Type WB Brake, Folio 6

Item No. OEM No. Description
1 51007-010-50 Magnet Assembly
2 FP-28C11 Coil Terminal Lug
2 52908-003-02 Coil Terminal Lug
4 51007-031-01 Terminal Shield
5 51007-029-04 Lead Bushing Clamp
6 51007-029-01 Lead Bushing
6 51007-029-02 Lead Bushing
8 51007-020-01 Magnet Faceplate
10 51139-040-04 Calibration Plate
11 51007-019-50 Magnet Case Assembly
12 51007-019-02 Gasket
13 22903-28402 Set Screw
14 51007-019-01 Magnet Case
15 51007-035-01 Non-Magnetic Spacer
15 51139-035-01 Nameplate
17 51139-035-01 Nameplate
19 51007-029-05 Junction Box Cover
20 51007-029-06 Cover Gasket
22 51007-032-01 Junction Box
23 51007-029-03 Lead Gasket
24 50909-016-56 Coil
24 51007-038-50 Coil, 440-580 HP
24 51007-038-54 Coil, 230-305 HP
24 51007-038-53 Coil, 290-385 HP
24 51007-037-52 Shunt Coil
24 51007-038-55 Coil, 175-235 HP
24 50909-016-58 Brake Coil 30" Series
24 51007-038-52 Coil, 315-410 HP
25 W-19090 Lead Clamp Stud
26 W-19091 Lead Clamp
29 51007-039-01 Pin
31 51007-018-50 Armature Assembly
32 51007-023-01 Bearing
33 51007-016-50 Shoe Lever Assembly
34 22903-28402 Set Screw
35 51007-030-51 Virtual Center Assembly, LH
36 51007-030-50 Virtual Center Assembly, RH
37 51007-043-01 Bracket
38 50502-052-16 Spacer
39 50502-601-13 Spring
42 51007-042-03 Bearing (Type T 30")
43 50502-526-17 Special Cap Screw
45 50502-601-38 Shoe Clamp Spring
46 51007-028-01 Shoe Clamp
47 51007-017-50 Connecting Rod Assembly
48 51007-017-01 Connecting Rod Link, RH
49 W-23080 Lock Nut
50 51007-017-03 Connecting Rod
51 50502-551-01 Jam Nut, LH
52 51007-017-02 Connecting Rod Link, LH
53 51007-023-01 Bearing
54 51007-013-50 Brake Shoe Assembly
55 51007-022-01 Brake Shoe
56 51007-026-01 Brake Block
58 51007-014-50 Shoe Lever Assembly
59 22903-28402 Set Screw
60 51007-047-02 Brake Wheel
61 51007-015-50 Shoe Support Lever Assembly
62 51007-039-03 Armature Pin
63 51007-021-01 Manual Release Screw
64 50502-601-12 Spring
65 50502-003-32 Washer
66 51007-021-02 Manual Release Nut
68 51007-027-51 Torque Screw Assembly
69 51007-027-02 Torque Screw
70 50502-051-28 Spacer
71 SP-875 Thrust Washer
72 50502-003-30 Washer
75 50502-551-03 Locknut
76 51007-027-01 Torque Screw Plate
77 50502-003-31 Spring Thrust Plate
78 51007-040-01 Operating Spring
79 51007-012-50 Frame Assembly
80 22903-28402 Set Screw
81 51007-039-02 Outer Lever/Support Lever Pin
0 51017-029-01 Block
0 50903-808-57 Brake Block
