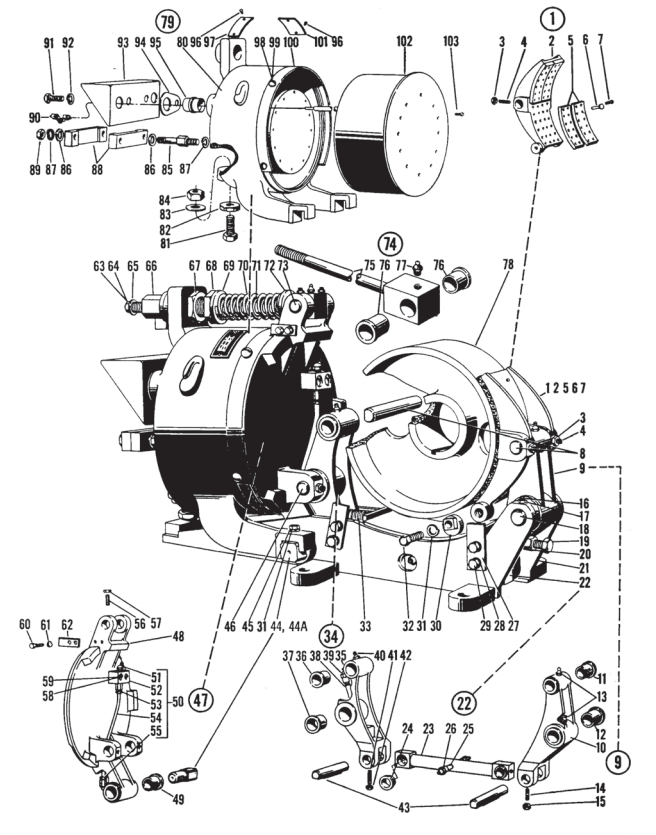

Ohio Contact replacement crane controls for Square D Class 5010 23" Type WB Brake, Folio 5. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | W-23004-A | Assembled Brake Shoe, Complete |
| 2 | W-23005 | Brake Shoe, Only |
| 5 | W-23043 | Lining |
| 6 | WB-659 | Rivet |
| 8 | W-23032 | Shoe Pin |
| 9 | W-23006-A | Assembled Shoe Lever, Complete |
| 10 | W-23008-A | Shoe Lever |
| 11 | FP-24J11 | Bearing |
| 12 | FP-24J12 | Bearing |
| 13 | FP-25A12 | Grease Fitting |
| 18 | W-23033 | Shoe Lever Pin (Frame End) |
| 19 | W-23027 | Equalizing Screw |
| 20 | W-23042 | Lock Nut |
| 21 | W-23018-A | Assembled Frame |
| 22 | W-23009-A | Assembled Connecting Rod Comp. |
| 23 | W-23095-A | Connecting Rod |
| 24 | FP-24J11 | Bearing |
| 26 | FP-25A15 | Grease Fitting |
| 27 | W-23025 | Cam Rail |
| 30 | W-19015-A | Cam |
| 31 | 23701-00380 | Pl. Lock Washer |
| 32 | 21401-28560 | Cap Screw |
| 33 | W-23021 | Centering Spring |
| 34 | W-23007-A | Assembled Shoe Lever, Complete |
| 35 | W-23008-A | Shoe Lever |
| 36 | FP-24J11 | Bearing |
| 39 | FP-25A12 | Grease Fitting |
| 40 | FP-25A15 | Grease Fitting |
| 42 | W-19049 | Air Gap Indicator |
| 43 | W-23031 | Connecting Rod Pin |
| 44 | For improved construction | |
| 44 | W-23232 | Magnet Hinge Pin |
| 44 | S-23233 | Pin Collar |
| 46 | W-23034 | Shoe Lever Pin (Armature End) |
| 47 | W-23002-A | Assembled Armature, Complete |
| 48 | W-23003-A | Armature |
| 49 | FP-24J12 | Bearing |
| 50 | W-23047-A | Assembled Grease Unit, Comp. |
| 51 | W-13026 | Header Block |
| 52 | FP-25A16 | Grease Fitting |
| 53 | FP-25A17 | Compression Fitting |
| 54 | W-23048 | Tube |
| 55 | FP-25A18 | Compression Fitting |
| 63 | 21401-22240 | H.I. Cap Screw |
| 64 | 23701-00220 | Lock Washer |
| 65 | SS-292 | Washer |
| 66 | W-19022 | Manual Release Nut |
| 67 | W-19041 | Lock Nut |
| 68 | W-23023 | Spring Adjusting Nut |
| 69 | W-23045 | Spring Collar |
| 70 | W-23020 | Operating Spring, Large |
| 70 | W-23159 | Spring, 50% Of Std. Torque |
| 71 | W-23082 | Operating Spring, Small |
| 72 | W-23078 | Spring Collar |
| 73 | W-13033 | Shoe Lever Pin (Frame End) |
| 73 | W-23035 | Pin |
| 74 | W-23012-A | Assembled Spring Rod, Complete |
| 75 | W-23094-A | Spring Rod |
| 76 | FP-24J10 | Bearing |
| 77 | FP-25A12 | Grease Fitting |
| 79 | W-23001-A | Assembled Magnet, Complete |
| 79 | W-23201-A | Magnet Assembly |
| 80 | W-23087-A | Magnet Case |
| 81 | W-23040 | Magnet Adjusting Screw |
| 82 | W-23088 | Magnet Adjusting Nut |
| 83 | W-23092 | Washer |
| 84 | W-23080 | Lock Nut |
| 85 | W-19090 | Lead Clamp Stud |
| 88 | W-19091 | Lead Clamp |
| 93 | W-23089 | Terminal Shield |
| 94 | W-23039 | Lead Gasket |
| 95 | W-23029 | Lead Bushing |
| 95 | W-23079 | Lead Bushing |
| 100 | W-23024 | Dust Shield |
| 102 | W-23127 | Retaining Plate 7 holes (Stainless |
| 102 | W-23126 | Retaining Plate Cover |
| 102 | W-23127 | Retaining Plate, 19 holes, Folio 5A |
| 102 | W-23127 | Retaining Plate, 12 holes, Folio 5 |
| 0 | 23004-00400 | H. Nut |
| 0 | 29005-80715 | Frame Bushing |
| 0 | W-23028 | Frame Bushing |
| 0 | 50502-526-13 | Screw |
| 0 | 50502-526-10 | Equalizing Screw |
| 0 | 21714-22280 | Nylock Brass Screw |
| 0 | W-23124 | Cam Rail |
| 0 | 23223-46800 | Pipe Nipple |
| 0 | W-23258-A | Coil |
| 0 | W-23052-A | Coil |
| 0 | W-23061-A | Coil |
| 0 | W-23261-A | Coil |
| 0 | W-23058-A | Coil |
| 0 | W-23254-A | Coil 110-140 HP |
| 0 | W-23252-A | Brake Coil, 160-205 hp |
| 0 | W-23253-A | Coil, 140-180 HP |
