Ohio Contact replacement crane controls for Square D Class 5010 19" Type F Series A. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

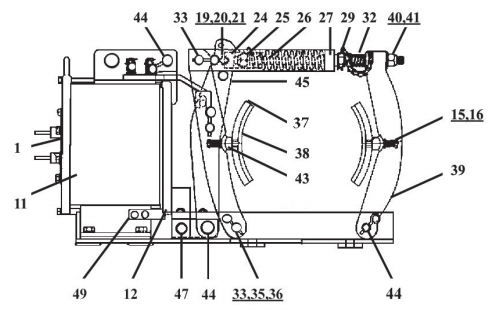

| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 50907-143-50 | Magnet Case Cover Assembly |
| 5 | 50907-144-01 | Terminal Shield |
| 6 | 50907-134-01 | Lead Bushing |
| 7 | 29206-00761 | O" ring |
| 9 | 21008-06120 | Drive Screw |
| 11 | 50907-102-50 | Base and Magnet Case Assembly |
| 12 | 50907-121-50 | Armature Assembly |
| 13 | 29005-72600 | Bearing |
| 14 | 50907-140-50 | Centering Bracket Assembly |
| 15 | 50901-010-20 | Centering Spring |
| 19 | 50903-407-06 | Latch Pin |
| 20 | 29907-04810 | E" Ring |
| 21 | 50901-010-18 | Latch Pin Spring |
| 24 | 50907-117-50 | connecting Rod Assembly |
| 25 | 50903-405-05 | Spring Seat |
| 26 | 50901-010-19 | Operating Spring |
| 27 | 50907-137-50 | Yoke Assembly |
| 28 | 50907-141-01 | Calibration Plate |
| 29 | 50907-135-01 | Manual Release Nut |
| 32 | 50901-010-21 | Connecting Rod Spring |
| 33 | 50903-401-19 | Pin |
| 34 | 50903-402-02 | Locking Pin |
| 37 | 50907-101-50 | Shoe Assembly, Includes Lining |
| 38 | 50903-808-55 | Shoe Lining Kit |
| 39 | 50907-127-50 | Outboard Shoe Lever Assembly |
| 40 | 50907-113-01 | Stop Nut |
| 41 | 50907-109-01 | Adjusting Nut |
| 43 | 50903-404-05 | Lining Wear Indicator |
| 44 | 50903-401-17 | Pin |
| 45 | 50907-129-50 | Inboard Shoe Lever Assembly |
| 46 | 50907-119-50 | Conecting Rod Lever Assembly |
| 47 | 50907-115-50 | Connecting Link Assembly |
| 48 | 50903-401-18 | Pin |
| 49 | 50907-139-01 | Armature Gap Indicator |
| 52 | 50903-814-55 | Self-Adj. Shoe Mechanism Kit |
| 55 | 50907-156-01 | Spacer |
| 56 | 50907-158-01 | Connecting Rod |
| 57 | 29013-02160 | Connecting Rod End Bearing |
| 62 | 50903-415-05 | Crank Pin |
| 63 | 50907-164-50 | Crank Assembly |
| 64 | 50907-160-01 | Ratchet Rod |
| 65 | 50907-165-50 | Ratchet Rod End w/Bearings |
| 66 | 50901-003-05 | Spring |
| 67 | 50907-154-50 | Star Wheel Stop Nut Assembly |
| 68 | 50907-161-01 | Ratchet Rod Guide |
| 0 | 50903-809-55 | Assorted Hardware Package |
