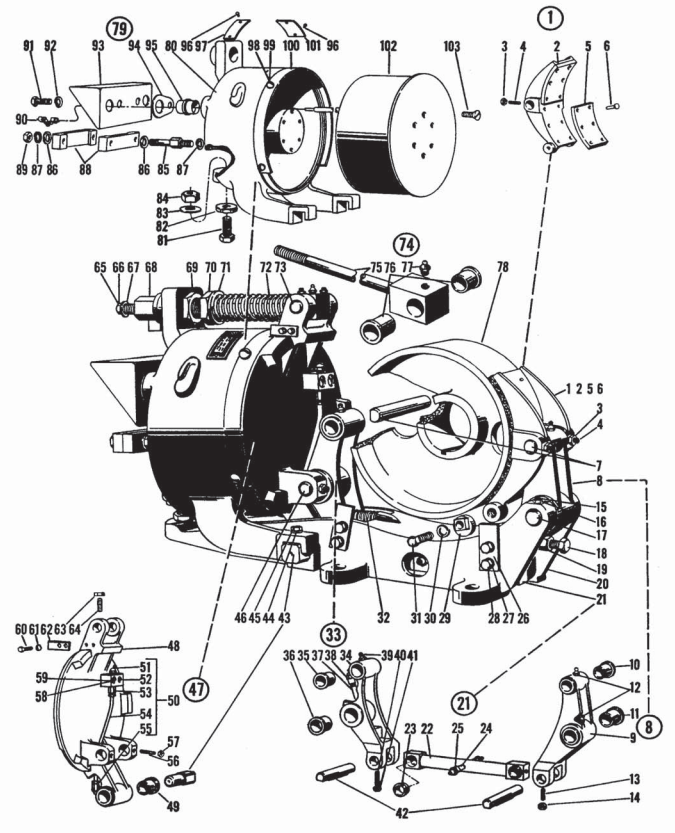

Ohio Contact replacement crane controls for Square D Class 5010 16" Type WB Brake, Folio 5. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | W-16004-A | Assembled Brake Shoe, Complete |
| 2 | W-16005-A | Brake Shoe |
| 5 | W-16043 | Brake Block |
| 6 | W-16046 | Rivet |
| 7 | W-16032 | Shoe Pin |
| 8 | W-16006-A | Assembled Shoe Lever, Complete |
| 9 | W-16008-A | Shoe Lever |
| 10 | FP-24B43 | Bearing |
| 11 | FP-24B42 | Bearing |
| 12 | FP-25A12 | Grease Fitting |
| 17 | W-16033 | Shoe Lever Pin (Frame End) |
| 18 | W-16027 | Screw |
| 19 | W-16042 | Lock Nut |
| 20 | W-16018-A | Assembled Frame, Complete |
| 21 | W-16009-A | Assembled Connecting Rod Comp. |
| 22 | W-16095-A | Connecting Rod |
| 23 | FP-24B44 | Bearing |
| 25 | FP-25A15 | Grease Fitting |
| 26 | W-16025 | Cam Rail |
| 26 | W-16162 | Rail |
| 29 | W-13015-A | Cam |
| 29 | W-16163 | Adjusting Ring |
| 32 | W-16021 | Centering Spring |
| 33 | W-16007-A | Assembled Shoe Lever, Complete |
| 34 | W-16008-A | Shoe Lever |
| 35 | FP-24B43 | Bearing |
| 36 | FP-24B42 | Bearing |
| 38 | FP-25A12 | Grease Fitting |
| 39 | FP-25A15 | Grease Fitting |
| 42 | W-16031 | Connecting Rod Pin |
| 43 | For improved construction | |
| 43 | W-16160 | Pin |
| 43 | W-16161 | Collar |
| 46 | W-16034 | Shoe Lever Pin (Armature End) |
| 47 | W-16002-A | Assembled Armature, Complete |
| 48 | W-16003-A | Armature |
| 49 | FP-24B42 | Bearing |
| 50 | W-16047-A | Assembled Grease Unit, Comp. |
| 51 | FP-25A16 | Grease Fitting |
| 52 | W-13026 | Header Block |
| 53 | FP-25A17 | Compression Fitting |
| 54 | W-16048 | Tube |
| 55 | FP-25A18 | Compression Fitting |
| 62 | W-13049 | Air Gap Indicator |
| 67 | TW-76 | Washer |
| 68 | W-16022 | Manual Release Nut |
| 69 | W-16041 | Lock Nut |
| 70 | W-16023 | Spring Adjusting Nut |
| 71 | W-16045 | Spring Collar |
| 72 | W-16020 | Operating Spring |
| 72 | W-16123 | Spring, 50% Of Std. Torque |
| 73 | W-16035 | Spring Rod Pin |
| 74 | W-16012-A | Spring Rod Complete |
| 75 | W-16094-A | Spring Rod w/Bearings |
| 76 | FP-24B40 | Bearing |
| 77 | FP-25A12 | Grease Fitting |
| 79 | W-16001-A | Assembled Magnet Complete |
| 80 | W-16087-A | Magnet Case |
| 81 | W-16040 | Magnet Adjusting Screw |
| 82 | W-16088 | Magnet Adjusting Nut |
| 83 | W-16092 | Washer |
| 84 | W-16080 | Lock Nut |
| 85 | W-16090 | Lead Clamp Stud |
| 88 | W-16091 | Lead Clamp |
| 93 | W-16089 | Terminal Shield |
| 94 | W-16039 | Lead Gasket |
| 95 | W-16029 | Lead Bushing |
| 100 | W-16024 | Dust Shield |
| 101 | 16" WB Calibration Plate | |
| 0 | 29005-68655 | Bearing |
| 0 | 51001-066-53 | Manual Release Nut |
| 0 | W-16157 | Retaining Plate |
| 0 | W-16028 | Bearing |
| 0 | W-16151-A | Rod |
| 0 | W-16152-A | Connecting Rod w/Bearings |
| 0 | W-16098 | Connecting Rod Pin |
| 0 | W-16262-A | Coil |
| 0 | W-16274-A | Coil, 80-100 HP |
| 0 | W-16286-A | Coil |
| 0 | W-16269-A | Shunt Coil |
| 0 | W-16265-A | Shunt Coil, 230 VDC |
| 0 | W-16252-A | Coil, 52-65 HP |
