Square D Class 5010 13" Type WB Brake, Folio 5

Ohio Contact replacement crane controls for Square D Class 5010 13" Type WB Brake, Folio 5. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

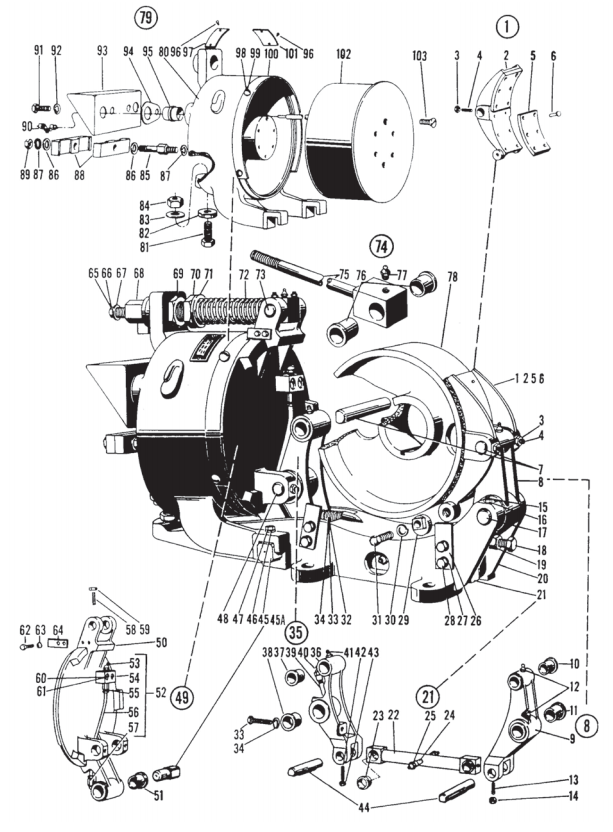

Square D Class 5010 13" Type WB Brake, Folio 5

Item No. OEM No. Description
1 W-13004-A Assembled Brake Shoe, Complete
2 W-13005 Shoe
3 22903-24200 Set Screw
5 W-13043 Brake Block
6 W-13046 Rivet
7 W-13032 Shoe Pin
8 W-13006-A Assembled Shoe Lever
9 W-13008-A Shoe Lever with Bearing
10 29005-56404 Bearing
100 W-13024 Dust Shield
11 29005-66446 Bearing
12 52927-017-60 Grease Fitting
15 22903-24200 Set Screw
17 W-13033 Shoe Lever Pin (Frame End)
18 WB-235 Equalizing Screw
19 W-13042 Lock Nut
20 W-13018-A Assembled Frame, Complete
0 W-13028 Bronze Frame Bushing
21 W-13009-A Assembled Connecting Rod, Comp
21 W-13151-A Connecting Rod W/Bearings
22 W-13095-A Connecting Rod with Bearings
23 29005-56403 Bearing
24 25223-46400 Pipe Nipple
25 52927-017-70 Grease Fitting
26 W-13025 Cam Rail
27 23701-00200 Pl. Lock Washer
28 21401-20240 H.I. Cap Screw
29 W-13015-A Cam
30 23701-00240 Pl. Lock Washer
31 21401-24480 H.I. Cap Screw
32 WB-2330 Centering Spring
33 WB-234 Magnet Adjusting Screw
34 23701-00280 Lock Washer
35 W-13007-A Assembled Shoe Lever, Complete
36 W-13008-A Shoe Lever with Bearing
37 29005-56404 Bearing
38 29005-66446 Bearing
39 25223-46680 Pipe Nipple
40 52927-017-60 Grease Fitting
41 52927-017-70 Grease Fitting
42 22903-24200 Set Screw
44 W-13098 Connecting Rod Pin
44 W-13031 Connecting Rod Pin
45 For improved construction
45 W-13159 Pin
45 W-13160 Collar
46 23701-00320 Pl. Lock Washer
47 21401-32640 H.I. Cap Screw
48 W-13034 Shoe Lever Pin (Armature End)
49 W-13002-A Assembled Armature, Complete
50 W-13003-A Armature with Bearings
51 29005-66446 Bearing
52 W-13047-A Assembled Grease Unit, Comp.
53 52927-017-50 Grease Fitting
54 W-13026 Header Block
55 52927-018-50 Compression Fitting
56 W-13048 Tube
57 52927-018-70 Compression Fitting
58 22903-24200 Set Screw
60 21101-20400 Fil. I. Cap Screw
61 23701-00200 Pl. Lock Washer
62 21401-20200 H.I. Cap Screw
63 23701-00200 Pl. Lock Washer
64 W-13049 Air Gap Indicator
65 21401-22240 H.I. Cap Screw
66 23701-00200 Pl. Lock Washer
66 23701-00220 Lock Washer
67 TW-76 Washer
68 W-13022 Manual Release Nut
69 W-13041 Lock Nut
70 W-13023 Spring Adjusting Nut
71 W-13045 Spring Collar
72 W-13020 Operating Spring
72 W-13121 Spring, 33% Of Std. Torque
72 W-13120 Spring, 66% Of Std. Torque
72 W-13163 Spring, 50% of Std. Torque
73 W-13035 Spring Rod Pin
74 W-13012-A Assembled Spring Rod, Comp.
75 W-13094-A Assembled Spring Rod, Complete
76 29005-48320 Bearing
77 52927-017-60 Grease Fitting
79 W-13001-A Assembled Magnet, Complete
80 W-13087-A Magnet Case, Only
81 W-13040 Magnet Adjusting Screw
81 W-16165 Stop Bracket
82 W-13088 Magnet Adjusting Nut
83 W-13092 Washer
84 W-13080 Lock Nut
85 W-13090 Lead Clamp Stud
86 23601-00240 Washer
87 23701-00240 Pl. Lock Washer
88 W-13091 Lead Clamp
89 23002-00240 H.I. Nut
91 21401-24240 H.I. Cap Screw
92 23701-00240 Pl. Lock Washer
93 W-13089 Terminal Shield
94 W-13039 Gasket
95 WB-2242 Terminal Bushing
0 29005-66440 Bearing
0 W-13266-A Coil Shunt
0 W-13263-A Coil
0 Calibration Plate 13" WB Calibration Plate
0 W-13262-A Coil, T-1351
0 T-1303 Class 5010 13" Typ
0 W-13250-A Coil
0 W-13268-A Shunt Coil
0 51001-071-52 Brake Block Kit
