Square D Class 5010 10" Type WB Brake, Folio 5

Ohio Contact replacement crane controls for Square D Class 5010 10" Type WB Brake, Folio 5. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

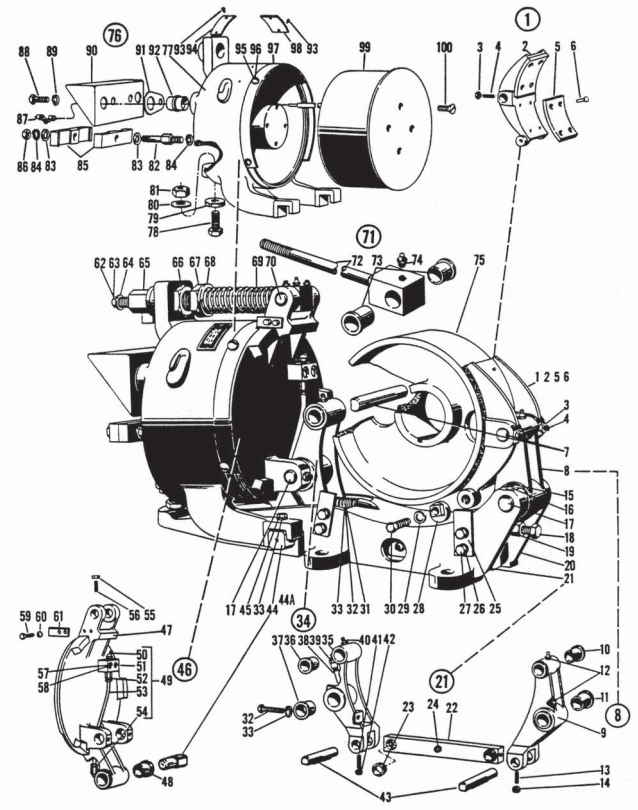

Square D Class 5010 10" Type WB Brake, Folio 5

Item No. OEM No. Description
1 W-10004-A Assembled Brake Shoe Complete
2 W-10005 Brake Shoe, Only
3 H.I. Check Nut
4 Set Screw
5 W-10043 Brake Block
6 WB-159 Lining Rivet
7 W-10032 Shoe Pin
8 W-10006-A Assembled Shoe Lever
9 W-10008-A Shoe Lever With Bearings
10 FP-24B45 Bearing
11 FP-24B40 Bearing
12 52927-017-60 Grease Fitting
13
14 H.I. Check Nut
15 Set Screw
16 H.I. Check Nut
17 W-10033 Shoe Lever Pin
17 W-10034 Shoe Lever Pin, Armature End
18 WB-355 Shoe Adjusting Screw
19 W-10042 Lock Nut
20 W-10018-A Assembled Frame, Complete
21 W-10009-A Assembled Connecting Rod
22 W-10095-A Connecting Rod
23 FP-24B47 Bearing
24 FP-25A11 Grease Fitting
25 W-10025 Cam Rail
26 Plated Lock Washer
27 02701-00200 Pl. Lk. Washer
27 Hex Head Cap Screw, Plated
28 W-8015-A Cam (replace with W-10117)
29 Plated Lock Washer
30 Hex Head Cap Screw, Plated
31 W-10021 Centering Spring
33 Lock Washer, Plated
34 W-10007-A Assembled Shoe Lever
35 W-10008-A Shoe Lever With Bearings
36 FP-24B45 Bearing
37 FP-24B40 Bearing
39 52927-017-60 Grease Fitting
40 52927-017-70 Grease Fitting
41 Set Screw
42 H.I. Check Nut
43 W-10098 10" Connecting Rod Pin
44 W-10030 Magnet Hinge Pin
44 W-10028 Frame Bushing
44 W-10114 Pin
44 W-10115 Collar
45 Hex Head Cap Screw, Plated
46 W-10002-A Assembled Armature
47 W-10003-A Armature, Complete
48 FP-24B40 Bearing
49 W-10047-A Assembled Grease Unit
50 52927-017-50 Grease Fitting
51 W-13026 Header Block
52 52927-018-50 Compression Fitting
53 W-10048 Tube
54 52927-018-70 Compression Fitting
55 Set Screw
56 H.I. Check Nut
59 Hex Head Cap Screw, Plated
60 Plated Lock Washer
61 W-13049 Air Gap Indicator
62 Hex Head Cap Screw, Plated
63 Plated Lock Washer
64 LC-48 Washer
65 W-10022 Manual Release Nut
66 W-10041 Lock Nut
67 W-10023 Spring Adjusting Nut
68 W-10045 Spring Collar
69 W-10020 Operating Spring
70 W-10035 Spring Rod Pin
71 W-10012-A Assembled Spring Rod
72 W-10094-A Spring Rod
73 FP-24B47 Bearing
74 52927-017-60 Grease Fitting
76 W-10001-A Assembled Magnet
77 W-10017 Magnet Case
78 W-10040 Magnet Adjusting Screw
79 W-10088 Magnet Adjusting Nut
80 W-10092 Washer
81 W-10080 Lock Nut
82 W-10090 Lead Clamp Stud
83 Flat Washer, Plated
84 Plated Lock Washer
85 W-10091 Lead Clamp
86 Hex Nut, Plated
88 Hex Head Cap Screw, Plated
89 Plated Lock Washer
90 W-10089 Terminal Shield
92 W-10029 Lead Bushing
93 Drive Screw
95 R.I. Screw
96 Plated Lock Washer
97 W-10024 Dust Shield
0 W-10113 Spring, 12 1/2% Of Std. Torque
0 W-10265-A Shunt Coil, 115 VDC
0 W-10254-A Coil, 16-20 HP
0 W-10118 Spring, 50% Of Std. Torque
0 W-10264-A Shunt Coil
0 W-10039 Lead Gasket
0 FP-25A18 Compression Fitting
0 FP-25A17 Compression Fitting
0 FP-25A16 Grease Fitting
0 FP-25A15 Grease Fitting
