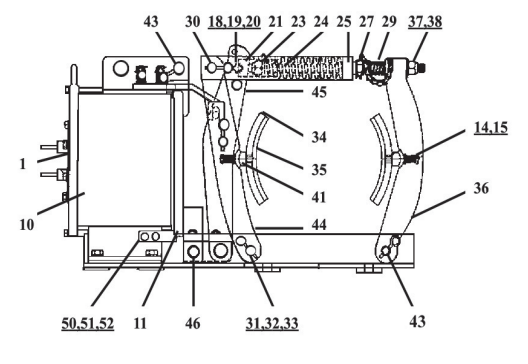

Ohio Contact replacement crane controls for Square D Class 5010 10" Type F Series A. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 50904-143-50 | Magnet Case Cover Assembly |
| 4 | 50904-167-01 | Terminal Shield |
| 5 | 50904-166-01 | Lead Bushing |
| 6 | 29206-00430 | O" Ring |
| 8 | 21008-06120 | Drive Screw |
| 10 | 50904-109-50 | Magnet Case |
| 11 | 50904-121-5 | Armature |
| 12 | 29005-48240 | Bearing |
| 13 | 50904-140-50 | Centering Bracket Assy. |
| 14 | 50901-010-02 | Centering Bracket Spring |
| 18 | 50903-407-01 | Latch Pin |
| 19 | 29907-02410 | E" Ring |
| 20 | 50901-010-09 | Latch Pin Spring |
| 21 | 50904-117-50 | Connecting Rod Assembly |
| 23 | W-10045 | Spring Collar |
| 24 | W-10020 | Operating Spring |
| 25 | 50904-137-50 | Yoke |
| 26 | 50904-141-01 | Calibration Plate |
| 27 | 50904-136-50 | Manual Release Nut |
| 29 | 50901-010-01 | Connecting Rod Spring |
| 30 | 50903-401-02 | Pin |
| 31 | 50903-402-0 | Locking Pin |
| 34 | 50904-101-50 | Shoe Assembly |
| 35 | 50903-808-52 | Shoe Lining Kit |
| 36 | 50904-127-50 | Outboard Shoe Lever |
| 37 | 50903-411-50 | Nut and Washer Assembly |
| 38 | 50901-010-03 | Shoe Mounting Spring |
| 41 | 50903-404-04 | Lining Wear Indicator |
| 42 | 50904-107-50 | Base |
| 43 | 50903-401-01 | Pin |
| 44 | 50904-129-50 | Inboard Shoe Lever |
| 45 | 50904-119-50 | Connecting Rod Lever |
| 46 | 50904-115-50 | Connecting Link |
| 47 | 50903-401-03 | Pin |
| 50 | 50904-139-01 | Armature Gap Indicator |
| 53 | 50903-809-52 | Assorted Hardware Package |
| 60 | 50903-805-52 | Self-Adj. Shoe Mechanism Kit |
| 62 | 50904-158-01 | Connecting Rod |
| 63 | 29013-02120 | Connecting Rod Bearing |
| 68 | 29005-24121 | Bearing |
| 71 | 50904-164-50 | Crank Assembly |
| 72 | 50904-160-01 | Ratchet Rod |
| 73 | 50903-415-01 | Crank Pin |
| 74 | 50906-165-50 | Ratchet Rod End Block |
| 75 | 21601-24660 | Socket Head Screw |
| 76 | 50901-003-01 | Spring |
| 77 | 50904-154-50 | Star Wheel Stop Nut Assembly |
| 78 | 50904-161-01 | Ratchet Rod Guide |
| 80 | 29005-32221 | Oilite Bearing |
