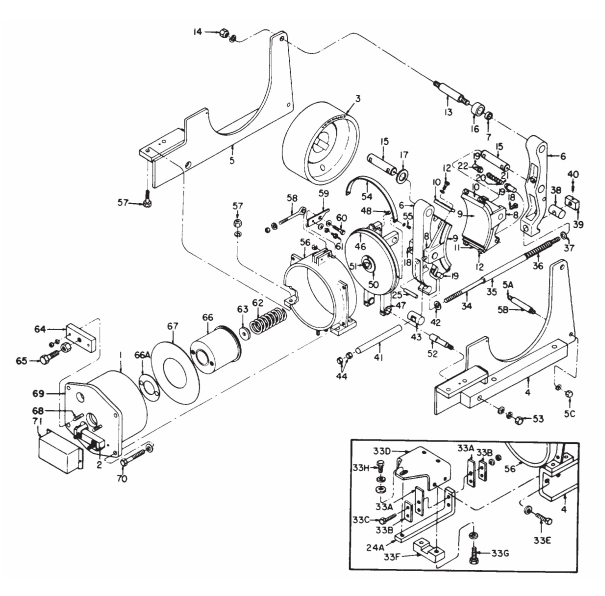

Ohio Contact replacement crane controls for General Electric IC9528 A101 10" Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 1D177G110 | Coil, 25-33 HP |
| 1 | 1D177G112 | Coil |
| 1 | F1D177G1A | Coil |
| 1 | 1D177G107 | Series Coil, 15-19 HP |
| 1 | 1D177G111 | Coil, 30-39 HP |
| 1 | 1D177G100 | Coil |
| 1 | 1D177G101 | Coil |
| 1 | 1D177G102 | Coil |
| 1 | 1D177G103 | Coil |
| 1 | 1D177G104 | Coil |
| 1 | 1D177G106 | Coil |
| 1 | 1D177G108 | Coil |
| 1 | 1D177G109 | Coil |
| 1 | 1D177G105 | Series Coil |
| 4 | 171C262G21 | Frame, Front |
| 5 | 171C262G22 | Frame Rear |
| 5 | N22P29088B | Tie Bolt |
| 5 | 229B790P2 | Spacer for Tie Stud |
| 6 | 171C266G20 | Yoke with Bushings |
| 7 | 573A608P2 | Bushing for Yoke |
| 8 | 171C215P1 | Brake Shoe |
| 9 | 305A4800P2 | Bonded Lining & Support Plate |
| 10 | 282A875P8 | Clamp for Lining, Upper |
| 11 | 282A875P2 | Clamp for Lining, Lower |
| 12 | N93P23012 | Screw |
| 13 | 287A121P2 | Bearing Pin For RH Yoke, SS |
| 14 | N200P29 | Nut for Bearing Pin |
| 15 | 287A122P2 | Bearing Pin For LH Yoke |
| 16 | 282A763P1 | Seal |
| 17 | 282A770P7 | Thrust Washer |
| 18 | 577A124P1 | Set Screw fro Brake Shoe |
| 19 | 282A862P2 | Friction Plug for Brake Shoe |
| 20 | 2418892P1 | Spring For Friction Plug |
| 21 | 282A869P12 | Guide Pin for Spring |
| 22 | N908P221B | Retaining Ring/Friction Plug |
| 24 | 138A1173P2 | Pivot Arm for Yoke |
| 25 | 287A120P2 | Pivot Pin for Yoke |
| 33 | 138A1174P2 | Spring Strip for Pivot Arm |
| 33 | 138A1178P2 | Backing Strip |
| 33 | N22P23020B6 | Screw Fastening Spring Strip |
| 33 | 104B9965P2 | Support for Pivot Arm |
| 33 | N25P23012 | Screw |
| 33 | 138A1175P2 | Guide for Pivot Arm |
| 33 | N21P23020 | Screw |
| 33 | N21P25020 | Adjusting Screw |
| 34 | 104B9964P2 | Tie Rod |
| 35 | 577A142P18 | Spacer for Tie Rod |
| 36 | 5144474P1 | Compression Spring |
| 37 | N402AP17B6 | Spring Seat |
| 38 | 285A839P2 | Rocker Pin for Tie Rod |
| 38 | 287A125P2 | Stainless Steel Rocker Pin |
| 39 | 233B565P2 | Nut for Tie Rod |
| 40 | N70P1601B6 | Set Screw |
| 41 | 577A129P8 | Tube |
| 42 | N402AP17B6 | Spring Seat |
| 43 | 138A1176P2 | Rocker Pin |
| 43 | 138A1191P2 | Stainless Steel Rocker Pin |
| 44 | N227P32 | Tie Rod Nut |
| 46 | 229B796G2 | Armature with Bushings |
| 47 | 573A608P12 | Bushing for Armature |
| 48 | 577A124P1 | Set Screw for Brake Shoe |
| 50 | 282A774P1 | Spring Seat |
| 51 | N21P25016 | Screw |
| 52 | 323A1972P2 | Bearing Pin |
| 53 | N200P29 | Nut for Bearing Pin |
| 54 | 282A775P2 | Dust Cap |
| 55 | N57P21008B | Screw |
| 56 | 111C9013P1 | Magnet Frame |
| 57 | 577A190P2 | Screw |
| 58 | 282A867P1 | Manual-Release Rod |
| 59 | 282A772P1 | Armature Gap Indicator |
| 60 | N22P25028B6 | Hinge Screw |
| 61 | N530P806B6 | Drive Screw |
| 62 | 5144472P1 | Torque Spring |
| 63 | 282A886P2 | Spring Seat for Torque Spring |
| 64 | 282A751P1 | Retainer for Torque Spring |
| 65 | 282A768P2 | Adj. Screw for Torque Spring |
| 66 | 282A873P1 | Magnet Core |
| 66 | 282A767P2 | Shim between Magnet Core |
| 67 | 282A859P2 | Retainer for Magnet Coil |
| 68 | 282A861P9 | Stud for Magnet Core |
| 69 | 229B778P1 | Back Plate |
| 70 | N93P29056 | Screw |
| 71 | 218A6420G1 | Conduit Cover |
