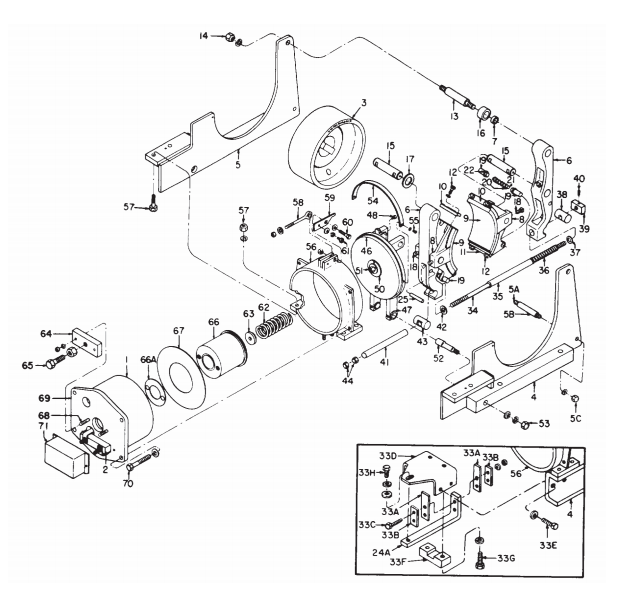

Ohio Contact replacement crane controls for General Electric IC9528 A100 8" Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 4 | 171C229P1 | Frame, Front |
| 4 | 171C229P3 | Frame, Front |
| 5 | 171C229P4 | Frame, Rear |
| 6 | 171C266G19 | Yoke w/Bushings |
| 7 | 573A608P1 | Bushing for Yoke |
| 8 | 171C213P1 | Brake Shoe |
| 9 | 151A7931P1 | Lining and Supporting Plate |
| 9 | 151A7931P1 | Lining and Supporting Plate |
| 10 | 282A875P7 | Clamp for Lining, Upper |
| 11 | 282A875P1 | Clamp for Lining, Lower |
| 12 | N22P23012B | Screw Fastening Stop Bracket |
| 13 | 972C161G1 | Bearing Pin |
| 14 | 245P29B6 | Nut for Bearing Pin |
| 15 | 972C161G7 | Bearing Pin |
| 16 | 282A763P1 | Seal |
| 17 | 282A770P6 | Thrust Washer |
| 18 | 577A124P1 | Set Screw for Armature |
| 19 | 282A862P1 | Friction Plug for Brake Shoe |
| 20 | 5144476 | Spring for Friction Plug |
| 21 | 282A869P4 | Guride Pin for Spring |
| 22 | N908P219B | Retaining Ring/Friction Plug |
| 24 | 138A1173P1 | Pivot Arm fro Yoke |
| 25 | 282A762P1 | Pivot Pin for Yoke |
| 33 | 138A1174P1 | Spring Strip fro Pivot Arm |
| 33 | 138A1178P1 | Backing Strip |
| 33 | N22P21016B | Screw Fastening Spring Strip |
| 33 | 104B9965P1 | Support for Pivot Arm |
| 33 | N22P23010B | Screw Fastening Support |
| 33 | 138A1175P1 | Guide for Pivot Arm |
| 33 | N22P21016B | Screw Fastening Spring Strip |
| 33 | N25P23016 | Adjusting Screw for Pivot Arm |
| 34 | 104B9964P1 | Tie Rod |
| 35 | 577A142P17 | Spacer for Tie Rod |
| 36 | 5144474 | Compression Spring |
| 37 | N402P45B | Spring Seat for Comp. Spring |
| 38 | 285A839P1 | Rocker Pin for Tie Rod |
| 39 | 233B565P1 | Nut for Tie Rod |
| 40 | 282A796P1 | Stop Bracket for Tie Rod |
| 40 | N70P1606B | Set Screw for Tie Rod Nut |
| 40 | N22P23010B | Screw Fastening Stop Bracket |
| 43 | 138A1176P1 | Rocker Pin |
| 46 | 229B796G1 | Armature with Bushings |
| 47 | 282A871P1 | Bushing for Armature |
| 48 | 577A124P1 | Set Screw for Armature |
| 50 | 282A888P1 | Spring Seat |
| 52 | 972C161G13 | Bearing Pin for Armature |
| 53 | N245P29B | Nut for Bearing Pin |
| 54 | 282A775P1 | Dust Cap |
| 55 | N57P210008B | Screw |
| 56 | 171C235G3 | Magnet Frame |
| 57 | 577A190P1 | Screw |
| 59 | 282A772P1 | Armature Gap Indicator |
| 60 | N22P25028B | Hinge Pin |
| 61 | N530P806B | Drive Screw |
| 62 | 5144475 | Torque Spring |
| 63 | 282A886P1 | Spring Seat for Torque Spring |
| 64 | 282A750P1 | Retainer for Torque Spring |
| 65 | 282A768P1 | Adj. Screw for Torque Spring |
| 66 | 282A856P1 | Magnet Core |
| 66 | 282A767P1 | Shim between Magnet Core |
| 67 | 282A859P1 | Retainer for Magnet Coil |
| 68 | 282A861P2 | Stid for Magnet Core |
| 69 | 282A883P1 | Back Plate |
| 70 | N22P29052B | Screw |
