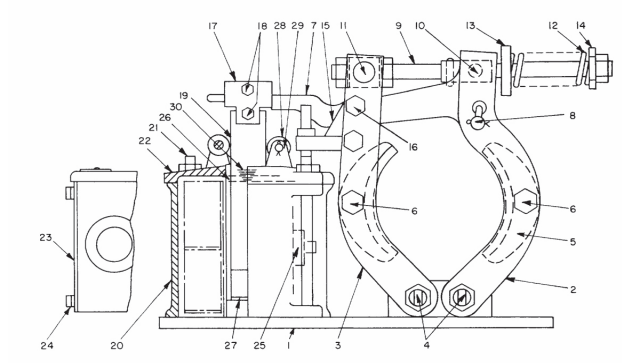

Ohio Contact replacement crane controls for General Electric Form C103AA DC Magnetic Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 3818987G2 | Base |
| 2 | 3647907P2 | Yoke, RH Front |
| 3 | 3647907P1 | Yoke, LH Front & Rear |
| 4 | 2468478 | Pin for Base & Yokes |
| 5 | 2841055G4 | Brake Shoe with Lining |
| 6 | N22P25080B6 | Bolt |
| 7 | 3647908P14 | Operating Lever |
| 8 | 2841044G3 | Pin |
| 9 | 2841052G1 | Connection Rod |
| 10 | 2468485 | Pin |
| 11 | 2468480 | Guide Block |
| 12 | 2412650 | Spring |
| 13 | 2841053G1 | Spring Seat, Inner |
| 14 | 2468479 | Spring Seat, Outer |
| 15 | 2841045G4 | Back Stop Assembly |
| 16 | N22P25016B6 | Screw Fastening Support |
| 17 | 9645025 | Link |
| 18 | 9645024 | Pin |
| 19 | 2437946 | Movable Core |
| 20 | 3818928P1 | Magnet Frame |
| 21 | 8048527 | Stud |
| 22 | 3818928P2 | Top Cover |
| 23 | 2437944 | Back Cover |
| 24 | N21P21008 | Screw |
| 25 | 577A101P5 | Pipe Plug |
| 26 | 2439424 | Sleeve |
| 27 | 2439437 | Disc |
| 28 | 2463746 | Roller |
| 29 | 1434518 | Pin |
| 30 | 2413332 | Spring |
| 0 | 5189824P2 | Lining Rivets |
| 0 | 3647907P3 | Yoke, RH Rear |
| 0 | 3641064P2 | Brake Shoe |
| 0 | 205A4704P1 | Brake Shoe Lining |
| 0 | 286A113P27 | Set Screw |
| 0 | 278A167G1 | Core Assembly |
| 0 | 3024265 | Coil |
| 0 | 9645027 | Roller |
