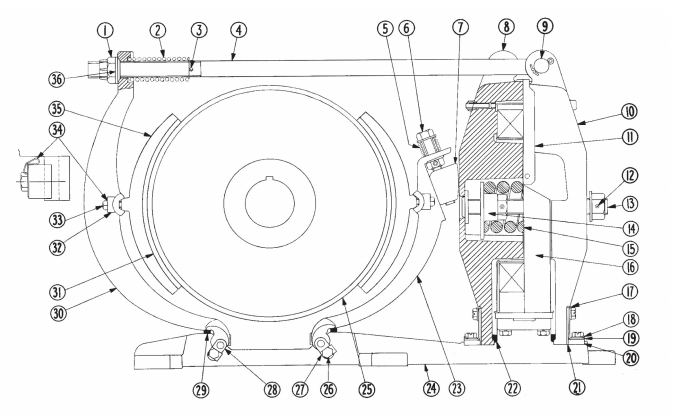

Ohio Contact replacement crane controls for Cutler Hammer No. 505 23" DC Magnetic Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 15-673 | Nut (Huglock) |
| 2 | 69-1987 | Compression Spring |
| 3 | 13-3186-13 | Spring Pin |
| 4 | 61-1008 | Pull Rod |
| 5 | 69-1470 | Spring |
| 6 | 54-4020-5 | Wedge Adjustment Complete |
| 7 | 54-2764 | Adjusting Wedge |
| 8 | 48-636-4 | Armature (Inner) |
| 9 | 13-1181-16 | Pin |
| 10 | 48-636-5 | Armature (Outer) |
| 11 | 73-1017-6 | Rubber Guard |
| 12 | 13-3186-12 | Spring Pin |
| 13 | 11-1746-6 | Adjusting Screw Complete |
| 14 | 49-2201-2 | Gland |
| 15 | 69-1692 | Compression Spring |
| 16 | Coil | Give # on Coil |
| 17 | 19-982-28 | Locking Strip |
| 18 | 19-982-29 | Locking Strip |
| 19 | 99-2059-3 | Retro-Fit Kit |
| 20 | 19-972-6 | Stop Block |
| 21 | 19-1688-4 | Stop Plate .102 Thick |
| 21 | 19-972-7 | Stop Plate .093 Thick |
| 21 | 19-972-17 | Stop Plate .105 Thick |
| 22 | 32-50-13 | Felt |
| 23 | 24-3304-5 | Shoe Lever (Inner) |
| 24 | 17-8047 | Base |
| 26 | 11-2051-2 | Screw |
| 27 | 79-4180-28 | Locking Bracket |
| 28 | 55-1548 | Plate |
| 29 | 32-467-6 | Dacron Felt |
| 30 | 24-3305-4 | Shoe Lever (Inner) |
| 31 | 48-338-23 | Shoe Lining |
| 32 | 55-1039 | Clamp |
| 33 | 11-1786 | Cap Screw |
| 34 | 69-1977 | Lock Spring |
| 35 | 48-633-4 | Shoe Complete |
| 36 | 16-1598-5 | Washer |
