Ohio Contact replacement crane controls for Cutler Hammer No. 505 16" DC Magnetic Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

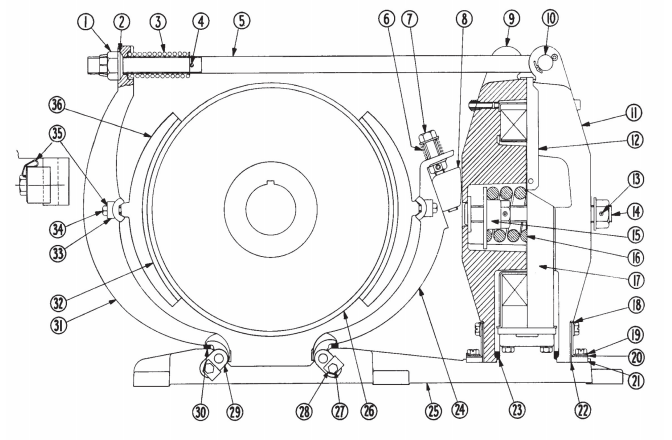

| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 15-681 | Nut (Huglock) |
| 2 | 16-1598-3 | Spherical Washer |
| 3 | 69-2225 | Compression Spring |
| 4 | 13-3186-7 | Spring Pin |
| 5 | 61-912 | Pull Rod |
| 6 | 69-942 | Spring |
| 7 | 54-4020-8 | Wedge Adjustment Assembly |
| 8 | 54-4524 | Adjusting Wedge |
| 9 | 48-555-5 | Armature (Inner) |
| 10 | 13-3978 | Pin (For Pull Rod) |
| 11 | 48-555-6 | Armature (Outer) |
| 12 | 73-1017-4 | Rubber Guard |
| 13 | 13-3186-9 | Spring Pin |
| 14 | 11-1746-4 | Adjusting Screw Assembly |
| 15 | 49-2036 | Gland |
| 16 | 69-1554 | Compression Spring |
| 17 | Coil | Give # on Coil |
| 18 | 19-1164-2 | Lock Strip |
| 19 | 19-1164 | Lock Strip |
| 20 | 99-2059 | Retro-Fit Kit |
| 21 | 19-972-8 | Stop Block |
| 22 | 19-972-9 | Stop Plate .093 Thick |
| 22 | 19-972-18 | Stop Plate .105 Thick |
| 22 | 19-1688-5 | Stop Plate .102 Thick |
| 23 | 32-50-11 | Felt |
| 24 | 24-2951-9 | Shoe Lever (Inner) |
| 25 | 17-8050 | Base |
| 27 | 11-2051 | Screw |
| 28 | 79-4180-27 | Locking Bracket |
| 29 | 55-1551 | Retainer |
| 30 | 32-467-4 | Dacron Felt |
| 31 | 24-2950-3 | Shoe Lever (Outer) |
| 32 | 48-338-12 | Lining |
| 33 | 55-1079 | Clamp |
| 34 | 11-1787 | Cap Screw |
| 35 | 69-1976 | Lock Spring |
| 36 | 48-554-3 | Shoe |
