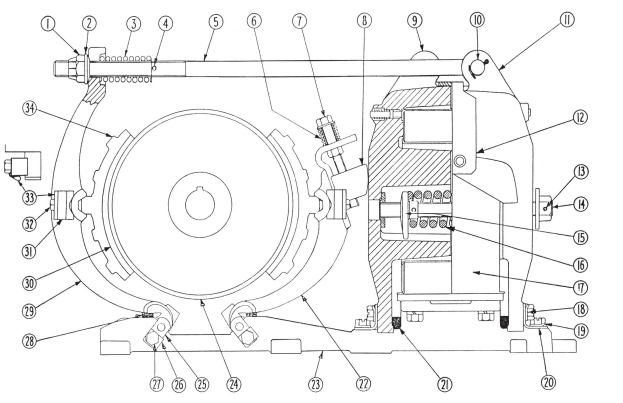

Ohio Contact replacement crane controls for Cutler Hammer No. 505 10" DC Magnetic Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 15-670 | Nut |
| 2 | 16-1598 | Spherical Washer |
| 3 | 69-2024 | Spring |
| 4 | 13-3186-7 | Spring Pin |
| 5 | 61-1006 | Pull Rod |
| 6 | 69-290 | Spring |
| 7 | 54-4020-2 | Wedge Adjustment Assembly |
| 8 | 54-2813 | Adjustment Wedge |
| 9 | 48-627-5 | Armature (Inner) |
| 10 | 13-506-9 | Pin (For Pull Rod) |
| 11 | 48-627-6 | Armature (Outer) |
| 12 | 73-1017-2 | Rubber Guard |
| 13 | 13-3186-5 | Spring Pin |
| 14 | 11-1746-2 | Adjustment Asssembly |
| 15 | 49-2194-2 | Gland |
| 16 | 69-1680 | Compression Spring |
| 17 | Coil | Give # on Coil |
| 20 | 99-2058-2 | Retro-Fit Kit |
| 21 | 32-50-8 | Felt |
| 22 | 24-3288-9 | Shoe Lever (Inner) |
| 23 | 17-6934 | Base |
| 25 | 55-1650 | Retainer |
| 26 | 79-6783-5 | Lock Bracket |
| 27 | 11-2051 | Screw |
| 28 | 32-467-2 | Dacron Felt |
| 29 | 24-3289-4 | Shoe Lever (Outer) |
| 30 | 48-338-22 | Lining |
| 31 | 55-1037 | Clamp |
| 32 | 11-1788 | Cap Screw |
| 33 | 69-1975 | Lock Spring |
| 34 | 48-1268-4 | Shoe with Lining |
