Cutler Hammer No. 503 8" Type "M" Brake

Ohio Contact replacement crane controls for Cutler Hammer No. 503 8" Type "M" Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

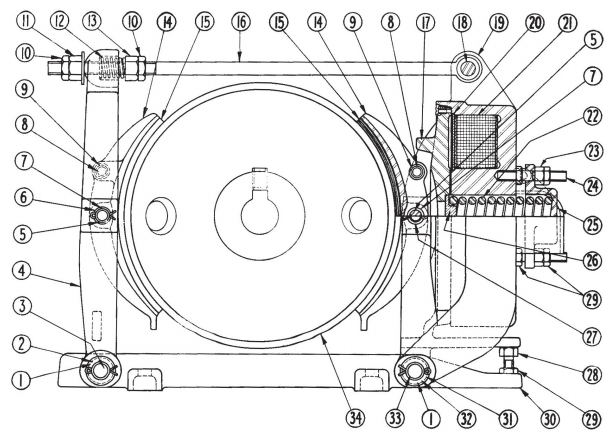

Cutler Hammer No. 503 8" Type "M" Brake

Item No. OEM No. Description
1 29-468 Base Bushing
2 29-1890-6 Shoe Lever Bushings
3 913-854 Pin
4 624-488 Shoe Lever w/Bushings
5 913-856 Pin
6 29-466 Shoe Lever Bushings
7 29-466 Shoe Lever Bushings
8 51-210 Plug for Brake Shoe
9 969-26J Spring in Brake Shoe
10 915-1443Z Nut
11 15-152 Nut
12 969-461 Spring for Pull Rod
13 915-1442Z Nut
14 48-320 Brake Shoes w/Lining
15 48-338-5 Brake Lining
15 1312-441 Rivets
16 61-135-3 Pull Rod
17 624-431 Armature Lever w/Bushings
18 913-855 Pin
20 630-54 String Babitt
20 873-6 Coil Shield
21 Magnet Coil Give # on Coil
22 69-489 Main Spring
23 915-1403Z Nut
24 914-624 Stud
25 3679-88F1 Spring Support
26 879-43 Spring Gland
27 29-466 Shoe Lever Bushings
28 911-5892Z Contact Screw
29 915-1401Z Nut
30 17-709-2 Base
31 29-1890-6 Shoe Lever Bushings
32 29-1890-6 Shoe Lever Bushings
33 913-853 Pin
