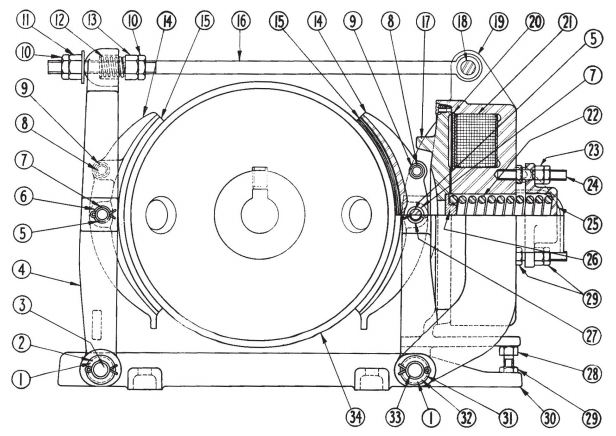

Ohio Contact replacement crane controls for Cutler Hammer No. 503 24" Type "M" Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 29-473 | Base Bushing |
| 2 | 929-802 | Bushing |
| 3 | 913-888 | Pin (For Shoe Lever) |
| 4 | 624-492 | Shoe Lever With Bushings |
| 5 | 913-887 | Pin (For Brake Shoe) |
| 6 | 29-471 | Bushings |
| 7 | 29-471 | Bushings |
| 8 | 51-214 | Plug For Aligning Brake Shoe |
| 9 | 969-434 | Spring in Brake Shoe |
| 10 | 915-2142Z | Lock Nut |
| 11 | 15-154 | Nut |
| 12 | 69-711 | Spring For Pull Rod |
| 13 | 915-2141Z | Nut |
| 14 | 48-322 | Brake Shoes w/Lining Assembled |
| 15 | 48-338-16 | Brake Lining |
| 16 | 61-140-3 | Pull Rod |
| 17 | 624-433 | Armature Lever w/Bushings |
| 18 | 913-948 | Pin (For Pull Rod) |
| 20 | 873-12 | Coil Shield |
| 21 | Magnet Coil | Give # on Coil |
| 22 | 69-493 | Main Spring |
| 23 | 915-1561Z | Nut |
| 24 | 914-738 | Stud |
| 25 | 3679-92F1 | Spring Support |
| 26 | 49-2287 | Spring Gland |
| 27 | 29-471 | Bushings |
| 28 | 11-356 | Adjusting Screw |
| 29 | 915-1562Z | Nut |
| 30 | 17-714-2 | Base |
| 31 | 929-802 | Bushing |
| 32 | 929-800 | Armature Bushings (Base) |
| 33 | 913-880 | Pin (For Armature) |
