Ohio Contact replacement crane controls for Clark 23" DC Magnetic Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

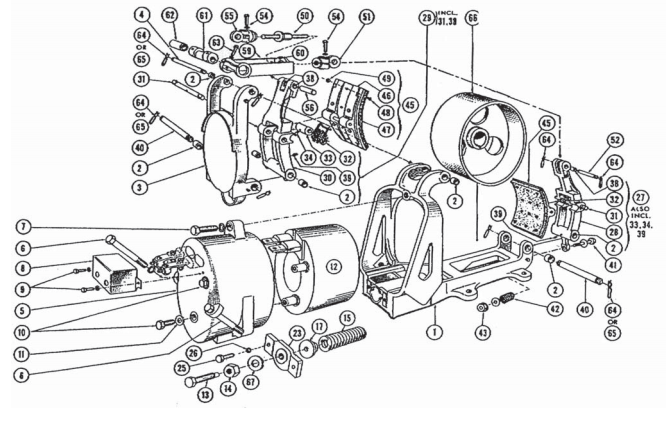

| Item No. | OEM No. | Description |
|---|---|---|
| 1 | D106-200504A | Frame |
| 2 | A106-200687 | Bushing |
| 3 | A106-200457A | Armature |
| 4 | T-103-29 | Bearing Pin |
| 5 | D106-200459 | Magnet Case |
| 6 | T-121-204 | Magnet Case Bolts (Bottom) |
| 7 | T-121-203 | Magnet Case Bolts (Top) |
| 8 | B106-200476 | Terminal Shield |
| 8 | T-121-43 | Terminal Shield Bolts |
| 10 | T-121-167 | Magnet Coil Bolts |
| 11 | T-2-388 | Washer |
| 12 | B106-200460-A5 | 23" Series Coil |
| 12 | B106-200460-A2 | 23" Series Coil |
| 12 | B106-200460-A3 | 23" Series Coil |
| 12 | B106-200460-A4 | 23" Series Coil |
| 12 | B106-200460-A1 | 23" Shunt Coil |
| 13 | A106-220139-4 | Torque Adj. Screw |
| 14 | T-115-89 | Nut |
| 15 | A106-200480 | Torque Spring |
| 17 | A106-230138-6 | Spring Seat |
| 18 | A106-194850A | Torque Indicator Rod |
| 19 | A106-194859 | Spring |
| 20 | A106-194861 | Rod Spring |
| 21 | T-2-145 | Washer |
| 22 | T-115-19 | Hex Nut |
| 24 | A106-200509 | Pressure Plate |
| 25 | T-121-159 | Bolt for Pressure Plate |
| 26 | T-155-23 | Washer |
| 27 | A106-200497A | Outer Arm, Complete |
| 28 | A106-200499A | Assembled Outer Arm |
| 29 | A106-200498A | Inner Arm, Complete |
| 30 | A106-200500A | Inner Arm Assembled |
| 31 | A106-200494A | Shoe Clamp Shaft & Stop Pin |
| 32 | B106-200669 | Shoe Clamp Spring |
| 33 | A106-200688 | Shoe Clamp Cam |
| 34 | T-143-2 | Shoe Clamp Cam Shaft Screw |
| 38 | A106-200686 | Bushing |
| 39 | T-233-1 | Alemite Fittings |
| 40 | T-103-30 | Bearing Pin, Lower Arm |
| 41 | T-121-255 | Bolt, Outer Arm Release |
| 42 | T-215-3 | Release Spring, Outer Arm |
| 43 | T-281-4 | Lock Nut |
| 45 | A106-200477A | Assembled Brake Shoe & Lining |
| 46 | A106-200472A | Brake Shoe less lining |
| 47 | B106-200479 | 23" Shoe Lining |
| 48 | T-122-57 | Shoe Lining Screws |
| 49 | T-281-2 | Lock Nut |
| 50 | B106-200468A | Adjusting Bar |
| 51 | A106-200718A | Outer Bar Eye |
| 52 | T-103-27 | Bearing Pin, Outer Bar Eye |
| 54 | T-121-160 | Bolt |
| 55 | A106-200720A | Inner Bar Eye |
| 56 | A106-194815-2 | Bearing Pin, Inner Bar Eye |
| 59 | B106-200511 | Equalizer Yoke |
| 60 | T-152-23 | Gauge Pin |
| 61 | A106-200474 | Eccentric Bushing |
| 62 | A106-200471 | Eccentric Bushing Spacer |
| 63 | T-121-205 | Lock Bolt, Equalizer Yoke |
| 64 | A106-65072 | Retainer, Bearing Pin |
| 65 | A106-79064 | Retainer, Bearing Pin |
| 67 | T-282-4 | Spring Washer |
