Ohio Contact replacement crane controls for Clark 13" DC Magnetic Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

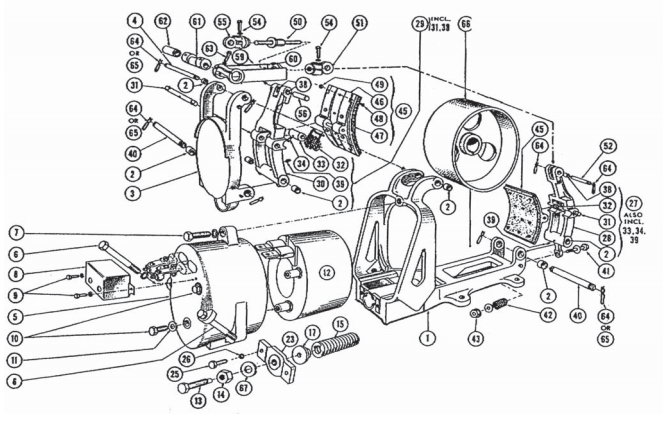

| Item No. | OEM No. | Description |
|---|---|---|
| 1 | C106-200844A | Frame |
| 2 | A106-194836 | Bushing |
| 3 | A106-194819A | Armature |
| 4 | T-103-20 | Bearing Pin |
| 5 | D106-194821 | Magnet Case |
| 6 | T-121-197 | Magnet Case Bolts (Bottom) |
| 7 | T-121-70 | magnet Case Bolt |
| 8 | A106-194873 | Terminal Shield |
| 9 | T-121-43 | Terminal Shield Bolts |
| 10 | T-121-132 | Magnet Coil Bolts |
| 11 | T-2-386 | Washer |
| 12 | B106-194872-A7 | 13" Series Coil |
| 12 | B106-194872-A1 | 13" Shunt Coil |
| 12 | B106-194872-A3 | 13" Series Coil |
| 12 | B106-194872-A4 | 13" Series Coil |
| 12 | B106-194872-A5 | 13" Series Coil |
| 12 | B106-194872-A6 | 13" Series Coil |
| 12 | B106-194872-A11 | 13" Series Coil |
| 12 | B106-194872-A16 | Coil |
| 12 | B106-194872-A13 | Series Coil |
| 13 | A106-230139-2 | Torque Adj. Screw |
| 14 | T-115-61 | Nut |
| 15 | A106-194830 | Torque Spring |
| 17 | A106-230138-3 | Spring Seat |
| 23 | A106-200547 | Pressure Plate |
| 25 | T-121-136 | Bolt |
| 26 | T-155-20 | Washer |
| 27 | A106-200536A | Outer Arm, Complete |
| 28 | A106-200537A | Assembled Outer Arm |
| 29 | A106-200538A | Inner Arm, Complete |
| 30 | A106-200539A | Inner Arm, Assembled |
| 31 | A106-200540A | Shoe Clamp Shaft & Stop Pin |
| 32 | B106-194839 | Shoe Clamp Spring |
| 33 | A106-194776 | Shoe Clmap Cam |
| 34 | T-143-2 | Shoe Clamp Cam Shaft Screw |
| 38 | A106-194824 | Bushing |
| 39 | T-233-1 | Alemite Fittings |
| 40 | T-103-21 | Bearing Pin, Lower Arm |
| 41 | T-121-183 | Bolt, Outer Arm Release |
| 42 | T-215-2 | Release Spring, Outer Arm |
| 43 | T-281-4 | Lock Nut |
| 45 | A106-194805A | Assemble Brake Shoe & Lining |
| 46 | A106-194876A | Brake Shoe less lining |
| 47 | C106-194828 | Shoe Lining |
| 48 | T-122-55 | Shoe Lining Screws |
| 49 | T-281-2 | Lock Nut |
| 50 | B106-194832A | Adjusting Bar |
| 51 | A106-194784A | Outer Bar Eye |
| 52 | T-103-22 | Bearing Pin, Outer Bar Eye |
| 54 | T-121-242 | Lock Bolt |
| 55 | A106-194786A | Inner Bar Eye |
| 56 | A106-194815-4 | Bearing Pin, Inner Bar Eye |
| 59 | B106-200549 | Equalizer Yoke |
| 60 | T-152-21 | Gauge Pin |
| 61 | A106-194831 | Eccentric Bushing |
| 63 | T-121-249 | Lock Bolt, Equalizer Yoke |
| 64 | A106-65143 | Retainer, Bearing Pin |
| 67 | T-282-2 | Spring Washer |
| 0 | T-121-170 | Magnet Case Bolts (Top) |
